MODEL FES 2: FIBRA PLUS Two Place Automatic Fiber Estimation System

Principle : Crude fibre refers to the residue of a feed that is insoluble after successive boiling with dilute acid and alkali. In the Weende’s method when the sample is subjected to acid and alkali digestion, we obtain a residue comprising ash (mineral matter) of the feed and the resistant fraction of carbohydrate. When the residue is ignited the organic matter gets oxidized leaving the inorganic residue or ash. Thus the difference in weight of the residue before and after ashing gives the weight of crude fibre.

Application : For determination of crude fibre, NDF, ADF, ADL, Cellulose, Hemicelluloses, Lignin & related parameters in plant materials, compound feed, food etc. (In accordance with weende, van soest and other recognized methods

System Highlights : Unique and compact design, Easy to handle with less maintenance, Absolute determination with efficient suction mechanism, Inbuilt electrically operated air pump for declogging, Microprocessor based digital temperature controller, Highly efficient, time saving and accurate, Independent sample loading with individual Mechnical controls. Safety features: Auto over temperature protection, auto sensor break protection, auto error indication, etc.

MODEL FES 3: FIBRA PLUS Three Place Automatic Fiber Estimation System

Principle : Crude fibre refers to the residue of a feed that is insoluble after successive boiling with dilute acid and alkali. In the Weende’s method when the sample is subjected to acid and alkali digestion, we obtain a residue comprising ash (mineral matter) of the feed and the resistant fraction of carbohydrate. When the residue is ignited the organic matter gets oxidized leaving the inorganic residue or ash. Thus the difference in weight of the residue before and after ashing gives the weight of crude fibre.

Application : For determination of crude fibre, NDF, ADF, ADL, Cellulose, Hemicelluloses, Lignin & related parameters in plant materials, compound feed, food etc. (In accordance with weende, van soest and other recognized methods)

System Highlights : Unique and compact design, Easy to handle with less maintenance, Absolute determination with efficient suction mechanism, Inbuilt electrically operated air pump for declogging, Microprocessor based digital temperature controller, Highly efficient, time saving and accurate, Independent sample loading with individual Mechnical controls. Safety features: Auto over temperature protection, auto sensor break protection, auto error indication, etc.

MODEL FES 4: FIBRA PLUS Four Place Automatic Fiber Estimation System

Principle :Crude fibre refers to the residue of a feed that is insoluble after successive boiling with dilute acid and alkali. In the Weende’s method when the sample is subjected to acid and alkali digestion, we obtain a residue comprising ash (mineral matter) of the feed and the resistant fraction of carbohydrate. When the residue is ignited the organic matter gets oxidized leaving the inorganic residue or ash. Thus the difference in weight of the residue before and after ashing gives the weight of crude fibre.

Application : For determination of crude fibre, NDF, ADF, ADL, Cellulose, Hemicelluloses, Lignin & related parameters in plant materials, compound feed, food etc. (In accordance with weende, van soest and other recognized methods)

System Highlights : Unique and compact design, Easy to handle with less maintenance, Absolute determination with efficient suction mechanism, Inbuilt electrically operated air pump for declogging, Microprocessor based digital temperature controller, Highly efficient, time saving and accurate, Independent sample loading with individual Mechnical controls. Safety features: Auto over temperature protection, auto sensor break protection, auto error indication, etc.

MODEL FES 6: FIBRA PLUS Six Place Automatic Fiber Estimation System

Principle : Crude fibre refers to the residue of a feed that is insoluble after successive boiling with dilute acid and alkali. In the Weende’s method when the sample is subjected to acid and alkali digestion, we obtain a residue comprising ash (mineral matter) of the feed and the resistant fraction of carbohydrate. When the residue is ignited the organic matter gets oxidized leaving the inorganic residue or ash. Thus the difference in weight of the residue before and after ashing gives the weight of crude fibre.

Application : For determination of crude fibre, NDF, ADF, ADL, Cellulose, Hemicelluloses, Lignin & related parameters in plant materials, compound feed, food etc. (In accordance with weende, van soest and other recognized methods)

System Highlights : Unique and compact design, Easy to handle with less maintenance, Absolute determination with efficient suction mechanism, Inbuilt electrically operated air pump for declogging, Microprocessor based digital temperature controller, Highly efficient, time saving and accurate, Independent sample loading with individual Mechnical controls. Safety features: Auto over temperature protection, auto sensor break protection, auto error indication, etc.

FIBRA PLUS FES Series PC-Compatible Fully Automatic Autosequencing Crude Fibre Estimation System - Economic Version

Principle : Crude fibre refers to the residue of a feed that is insoluble after successive boiling with dilute acid and alkali. In the Weende’s method when the sample is subjected to acid and alkali digestion, we obtain a residue comprising ash (mineral matter) of the feed and the resistant fraction of carbohydrate. When the residue is ignited the organic matter gets oxidized leaving the inorganic residue or ash. Thus the difference in weight of the residue before and after ashing gives the weight of crude fibre.

Application : For determination of crude fibre, NDF, ADF, ADL, Cellulose, Hemicelluloses, Lignin & related parameters in plant materials, compound feed, food etc. (In accordance with weende, van soest and other recognized methods)

System Highlights : Unique and compact design, Easy to handle with less maintenance, Absolute determination with efficient suction mechanism, Inbuilt electrically operated air pump for declogging, Microprocessor based digital temperature controller, Highly efficient, time saving and accurate, Independent sample loading with individual Mechnical controls. Safety features: Auto over temperature protection, auto sensor break protection, auto error indication, etc.

Unique Design
The FIBRA PLUS is well engineered with precise mechanical accuracy for perfect alignment of sintered silica crucibles with borosilicate extraction vessels, since the system needs to be absolute leak proof while involving hot boiling alkali and acid aplications. The anti corrosive viton adaptor with inner 'O-ring' creates a perfect seal.

Micro Brilliant Controller
The system has a stand alone Micro Brilliant programmable Energy Control unit with a separate housing with digital display of temperature of infrared heat source. The microprocessor based controls incorporates various parameters, ike set temperature, actual temperature, auto tuning, auto sensor break protection, auto error diagnostics, auto over temperature protection with digital display of parameters, Auto process over feature with optional digital timer.

Highly Versatile
The system is highly versatile designed with individual suction valves for filtration and individual pressure control valves for declogging, enabling the user to handle conveniently based on the sample load. Unlike other systems the FIBRA PLUS can handle either eight samples simultaneously or each sample individually or combination of more than two samples at the same time based on the user's requisite.

Absolute Economy
The system incorporates Efficient Thermal Ceramic Infrared Energy Source for quick heating and entire process of automation is designed to save time and for easy handling with less manpower by single user. The system occupies less table space and involves less recurring cost of reagents per sample.

Cold Extraction System
Each model of FIBRA PLUS system has corresponding Cold Extraction System for partial defatting to reduce the fat content by washing in cold solvent. This will enable trouble free estimation of fibre by reducing the fat content, removing sticky and fatty layers of the sample which helps in accurate estimation of fibre content.
Application: System for determination of Crude fibre, Neutral Detergent Fibre, Acid Detergent Fibre, ADL, Cellulose, Hemicelluloses, Lignin & related parameters in plant materials compound feed, food etc. Fibre Determination in accordance with weende, van Soest and other recognized methods (Safe and Environmental friendly).

Cold Extraction Unit Model : CES 6

• Extraction at ambient temperature for solvent dehydration of fibre residues
• No sample transfer and no loss of sample since the same crucibles are used for cold extraction unit and hot extraction unit.
• Incorporates modular construction with Stainless Steel crucible holder, Nylon brush with adaptors to have intact grip
• Individual Mechanical drain valves with imported viton drain tube for solvent drain, Compact housing with powder-coated finish

Automatic PC Compatible Fibre Estimation System Model : FES 6 R TS

• Automatic Six  Place PC Compatible Autosequencing  Fibre Estimation System for determination of Crude fibre, NDF, ADF, ADL, Cellulose, Hemicelluloses, Lignin,
• Ceramic Infrared Heater.
• Inbuilt Touch Control Panel
• Sample Size : 0.1 to 4 gms (depending on type of samples)
• TFT Graphic Touch Screen Display with unique wireless mouse to operate at a distance of 1-2 mtrs without connecting to PC.
• 2 Ports in the motherboard one for PC connectivity another for direct connection to Remote Mouse / Memory stick  for data storage
• Integrated autosequencing time/temperature domain of > 50 programs and >10 sequencing steps.
• Temperature Range: Ambient to  500º C (Continuously variable), Temperature Accuracy / Precision : +  0.5° C
• Temperature Controller is isolated separately in a control tower to protect electronics from heat zone and acid reaction zone, with separate access door for main unit & electronics control tower unit.
• Inbuilt Software enables multi user login feature in touch screen display with password protection for different user level for Administrator, supervisor and End user.
• Measuring Range: 0.1 to 100%
• Repeatability : ±1 % relative at 5% - 30% fibre level
• Reagent Preheating time: 8 - 12 min
• Reagent Preheated temperature time to Boiling: 12 - 15 mins
• Inbuilt software performs Live graphical representation of time /temperature gradient on touch screen display
• Real time date & clock with memory stick for data storage
• Heater Source: Automatic Inbuilt Ceramic Infrared Heater for reagent heating with programmable microprocessor based time / temp gradient temperature controller
• Reagent Addition: Direct to Extractor from top through feeding funnel
• Preheating hot plate for acid / alkali made of Casted aluminium alloy heater with Digital PID Control
• Electrical Requirement: 220v/50Hz. AC Mains.

MODEL FES 8: FIBRA PLUS Eight Place Automatic Fiber Estimation System

Principle : Crude fibre refers to the residue of a feed that is insoluble after successive boiling with dilute acid and alkali. In the Weende’s method when the sample is subjected to acid and alkali digestion, we obtain a residue comprising ash (mineral matter) of the feed and the resistant fraction of carbohydrate. When the residue is ignited the organic matter gets oxidized leaving the inorganic residue or ash. Thus the difference in weight of the residue before and after ashing gives the weight of crude fibre.

Application : For determination of crude fibre, NDF, ADF, ADL, Cellulose, Hemicelluloses, Lignin & related parameters in plant materials, compound feed, food etc. (In accordance with weende, van soest and other recognized methods

System Highlights : Unique and compact design, Easy to handle with less maintenance, Absolute determination with efficient suction mechanism, Inbuilt electrically operated air pump for declogging, Microprocessor based digital temperature controller, Highly efficient, time saving and accurate, Independent sample loading with individual Mechnical controls. Safety features:  Auto over temperature protection, auto sensor break protection, auto error indication, etc.

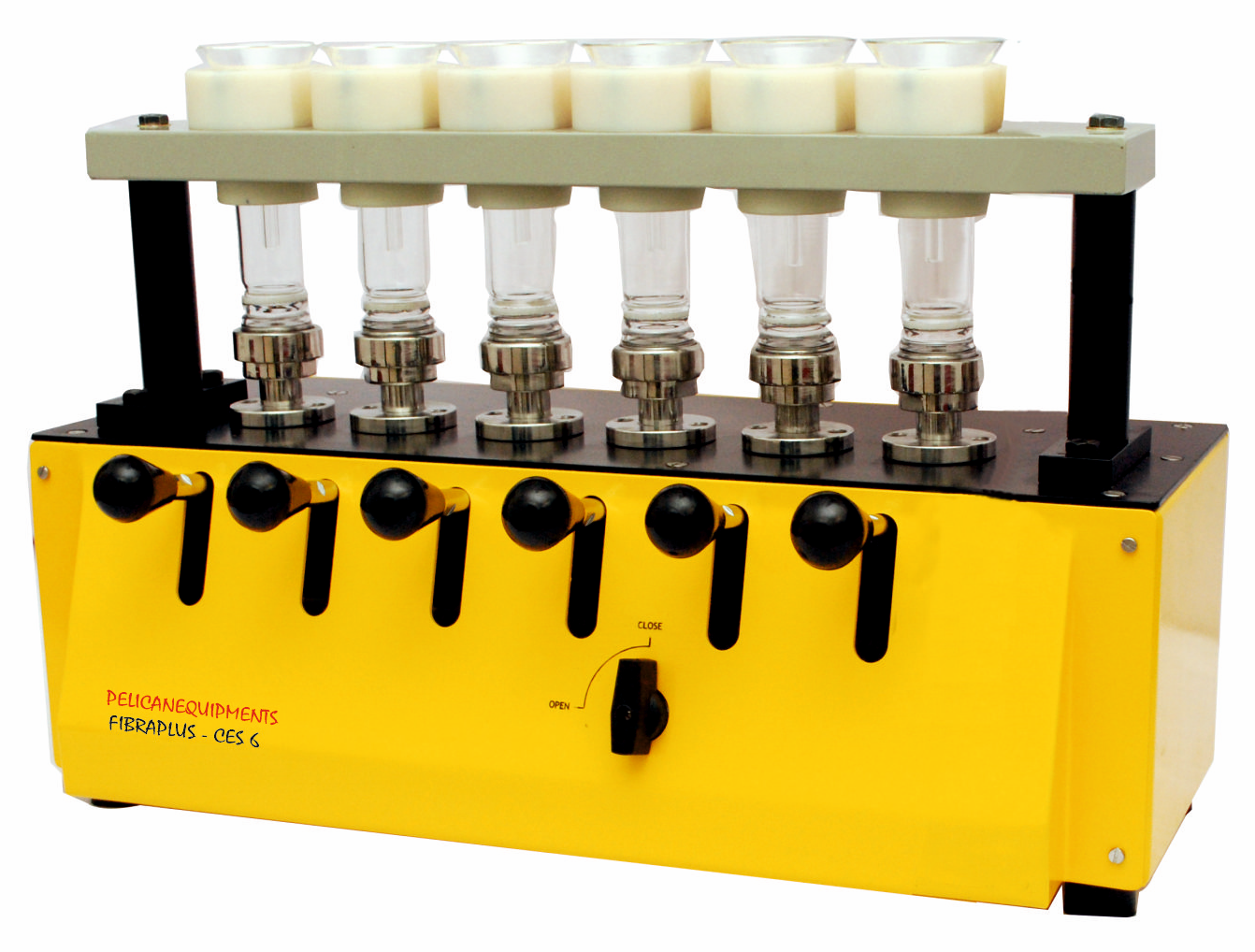

Cold Extraction for Defatting of Fibre Samples with acetone Model : CES 6

• Extraction at ambient temperature for solvent dehydration of fibre residues
• No sample transfer and no loss of sample since the same crucibles are used for cold extraction unit and hot extraction unit
• Six  Sample Cold Extraction System for defatting of Fibre samples
• Six place system with modular construction
• Stainless steel crucible holder – 6 Nos.
• Nylon bush with adaptors to have intact grip – 6 Nos.
• Mechanical individual drain valves – 6 Nos.
• Imported Viton drain tube for solvent drain.
•  Compact housing with powder coated finish.
