Kjeldhal Automatic Nitrogen Distillation System: DISTYL EM

Economic Version Simple Auto Distillation System

Kjeldhal Automatic Nitrogen Distillation System Model : DISTYL EM S

Basic Automatic PC Compatible Distillation System (Economic Special Version).

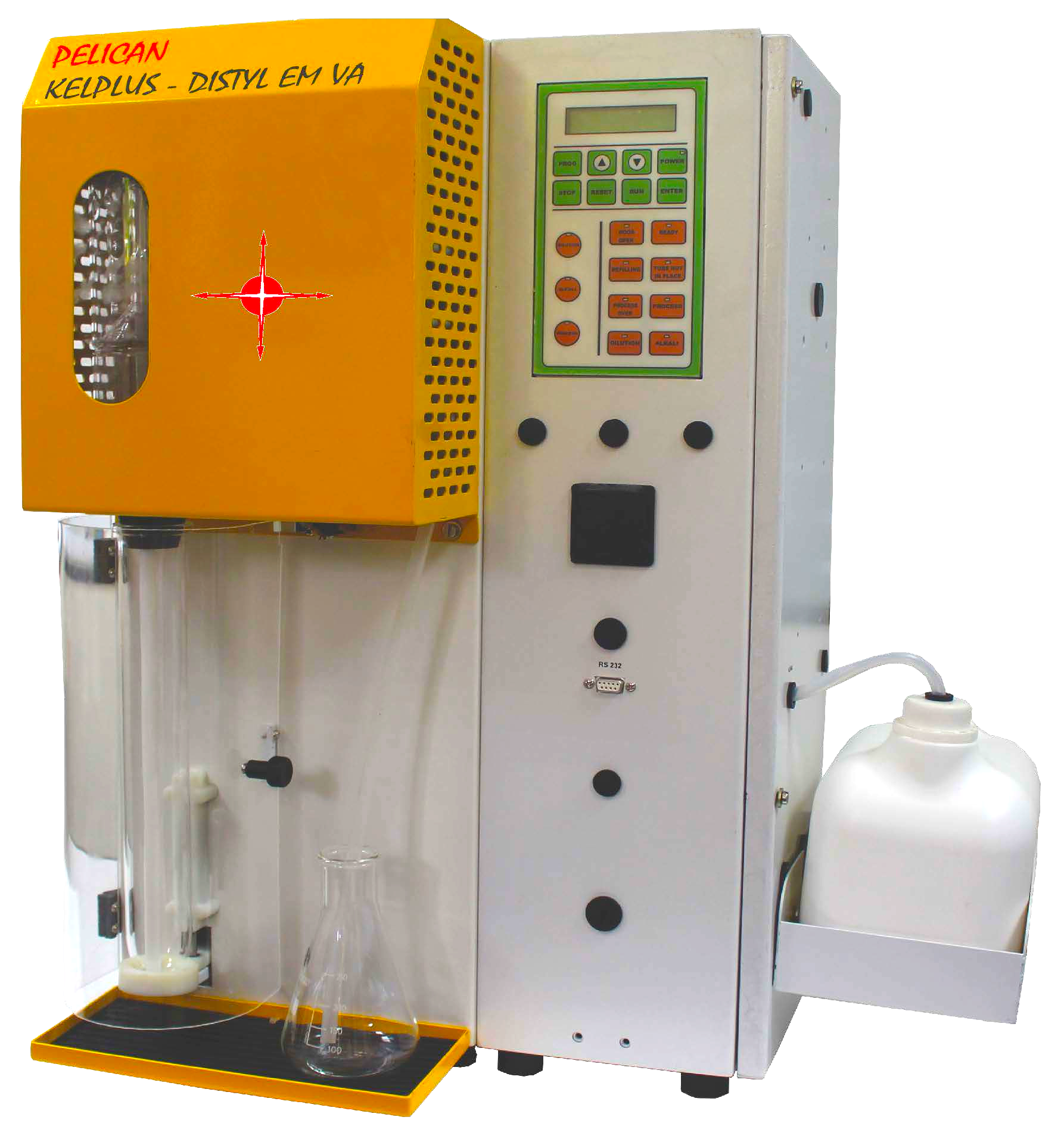

KEL PLUS Automatic Distillation System Model : DISTYL EM VA

KEL PLUS Microprocessor-based Simple Automatic PC-compatible Auto sequencing Value-Added Distillation System with in-built software with added safety requirements to fulfill GLP & CE Norms

• Fully Automatic sequencing with auto Intelligent run of sequencing steps of 30 programs (PC-compatible)
• Microprocessor-based with feather touch keys
• Automatic Dilution, Automatic Alkali Addition
• Automatic Steam Injection, Automatic Titration Connectivity Feature for future upgradation, Process over indication with alarm
• With inbuilt delay time features
• Two-line Alphanumeric Digital LCD Display
• Reagents tanks wall-mounted for easy handling and user's visibility.
• The control panel unit along with inbuilt temperature controller, timer, mother board and SMPS is isolated in separate control tower (not rack-mounted internally) and housing to protect electronics from wet chemistry and acid / alkali process area for longevity and safety of all electronic components, with separate access door for main unit and electronics control tower unit.
• Equipment incorporates transparent view window to watch the distillation process and splash head.
• Non-Corrosive fobust metallic condenser.

Kjeldhal Automatic Nitrogen Distillation System Model : ELITE EX VA

Superior automatic pc compatible distillation system with value added feature.

KEL PLUS Automatic Distillation System Model : SUPRA LX VA

• Autosequencing Microprocessor based PC Compatible Distillation System with in-built software with 50 Predefinable User Storage Auto Sequence Programmes
• Automatic sequencing with auto Intelligent run of  programmable steps which include Automatic  Boric acid addition, Automatic Dilution, Automatic Alkali Addition, Automatic Steam injection, Automatic Residue Removal (Sample Disposal), Process over indication with alarm with delay time features, Automatic Titration Connectivity feature for future upgradation with complete Automatic safety features
• The suction module of waste residue is door mounted for easy serviceability.
• Microbrilliant distillate control with adjustable sensor, Two line Alpha numeric Digital LCD Display,
• Auto sensing of “NO WATER” condition in condenser & steam generator with alarm & signal to alert user.
• Auto deactivation of operation after warning in case of user non availability
• Enables automatic monitoring and measuring of high temperature in distillate with sensor for auto warning signal and safety alarm to alert user to control distillate temperature. Temperature displayed digitally.
• Auto reagent Level Sensor with Alarm for Reagents, Stainless steel non corrosive steam Generator
• Reagents tanks are wall mounted for easy handling and users visibility.
• Automatic water level monitoring & Perilstatic pump & Centrifugal pump for addition of reagents / solutions. Inbuilt Centrifugal Refilling pump for water (Dilution)
• Alkali Resistant plastic Splash head with technopolymer adaptor in expansion vessel
• The control panel unit along with inbuilt temperature controller, timer, motherboard and SMPS is isolated in separate control tower (not rack mounted internally) and housing to protect electronics from wet chemistry & acid/ alkali process area for longevity and safety of all electronic components, with separate access door for main unit & electronics control tower unit.
• Equipment incorporates transparent view window to watch the distillation process & splash head.
• Non Corrosive robust metallic condensor.
• Nitrogen level  : 0.1 to 200 mg Nitrogen (Min / Max Detection Limit)
• Nitrogen Reproducibility:  ± 0.1% RSD, Nitrogen Recovery : > 99.5% at Nitrogen levels between 1 - 200 mg N
• Electrical Requirement: 220-230V single phase 50Hz A.C

Kjeldhal Automatic Nitrogen Distillation System Model : CLASSIC DX

The Ultimate Fully Auto Run Completely Programmable Microtech PC Compatible Autosequencing Distillation System.

Kjeldhal Automatic Nitrogen Distillation System Model : CLASSIC DX VA

The ultimate fully auto run completely programmable microtech pc compatible autosequencing distillation system with system with value added feature.

Kjeldhal Automatic Nitrogen Distillation System Model : CLASSIC DX VA TS

New Fully Automatic Higher End Touch Screen Distillation System (Pc Compatible).

Kjeldhal Automatic Nitrogen Dual Distillation System Model: ULTIMA DUO DIST

Fully Automatic Value added higher end touch screen Auto sequencing PC compatible Dual Distillation System (Economic & Premium Versions)

No Of Samples : Two at a time
* Mode Of Operation : Single/both simultaneously,
* 4.3" colour Touch screen Module
* Auto display of schematic flow chart of stage in progress.
* Flow diagram display of auto sequencing steps
* Independent Stainless Steel Steam generator, Expansion vessel and water condensor
* Independent Auto distillate control unit in each
* Facility to program and control distillate volume for determination of available Nitrogen.
* Incorporates automatic distillate controll facility in which predefined volume of distillate can be set in the system at the receiver end.
* Automatic Addition of Receiver solution addition, Dilution, KMNO4 addition, Alkali addition, Steam addition, Residue removal, process over indication, Titration Connectivity feature, Aspiration of receiver residue
* Automatic reagent level sensor with alarm
* Auto tube insert error indication
* Auto deactivation of system on error diagnosis
* Automatic door open warning indication
* Auto online water saving mechanism
* Inbuilt strategically placed vent valves to avoid back suction
* SMPS System for 12V power supply to give regulated voltage
* Electrical components rack mounted and Isolated from alkali and water carrying parts,
* Inbuilt Automatic Printer with communication software for documentation of results without connecting to PC
* Results will be calculated automatically in terms of percentage of Protein, Nitrogen, Total Nitrogen, available nitrogen, etc on input of titre value.
* Automatic sensing of no water condition in the condenser & Steam Generator with auto alarm and warning signal to alert user.
* Auto deactivation of operation after few minutes of warning on "No water Condition" in case of user non availability in condensor & Steam Generator
* Automatic monitoring and measuring of high temperature in distillate with temperature display & platinum sensor for auto warning signal and safety alarm to control distillate temperature
* Continuously measured temperature is displayed digitally.
* Peristaltic pump for addition of reagents.

KELPLUS Automatic Distillation System

Model CLASSIC DXVATS(E) : KEL PLUS

Microprocessor Based Fully Auto run Automatic Value Added Autosequencing Completely Programmable PC compatible Touch Screen Distillation System with inbuilt printer and software & TFT LCD Display (Economic Version) with added safety requirements to fulfill GLP & CE Norms
